Prerequisites to install Plant Integrations connector

Required files:

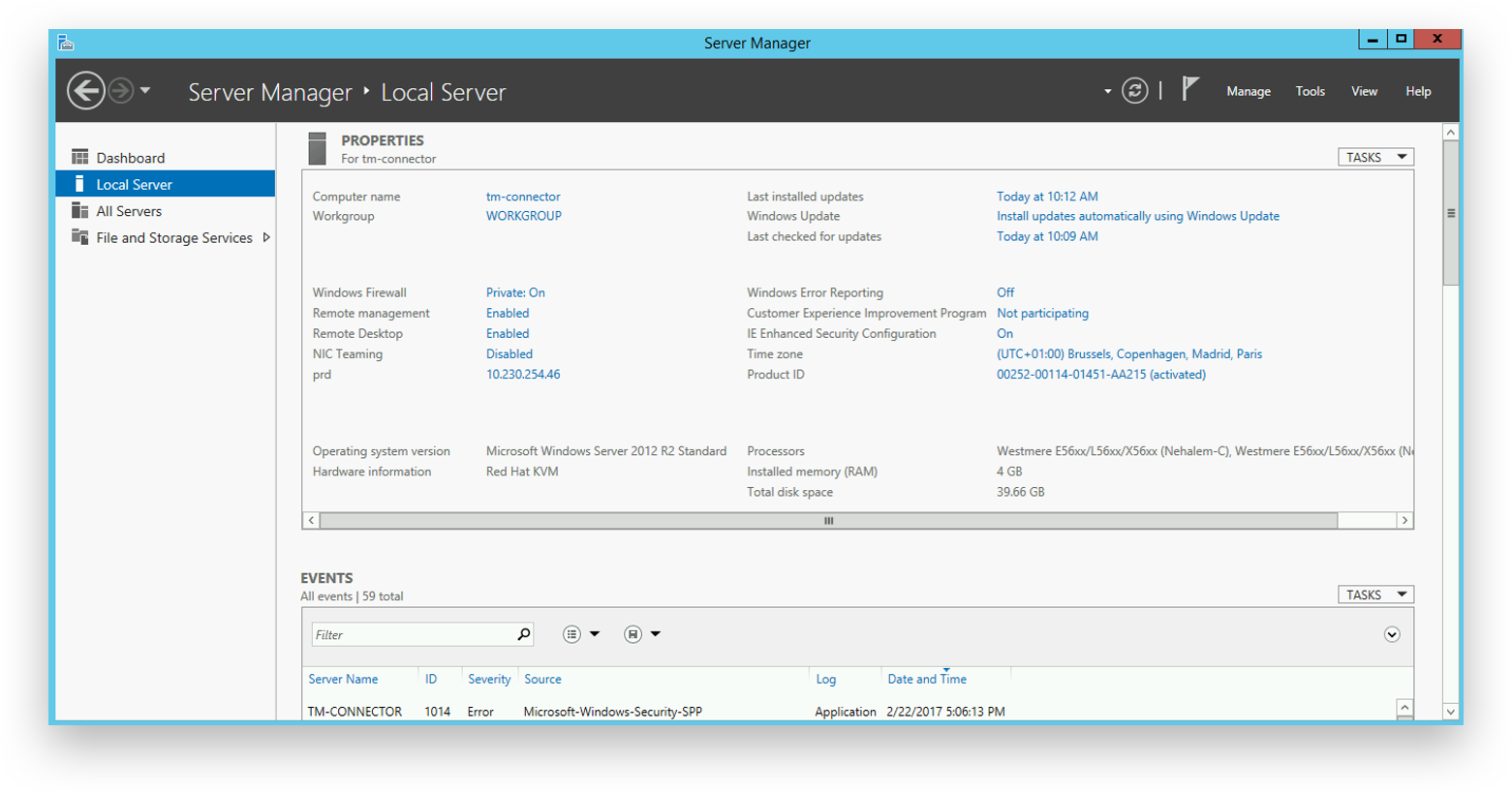

  1. Open the Windows Server Manager

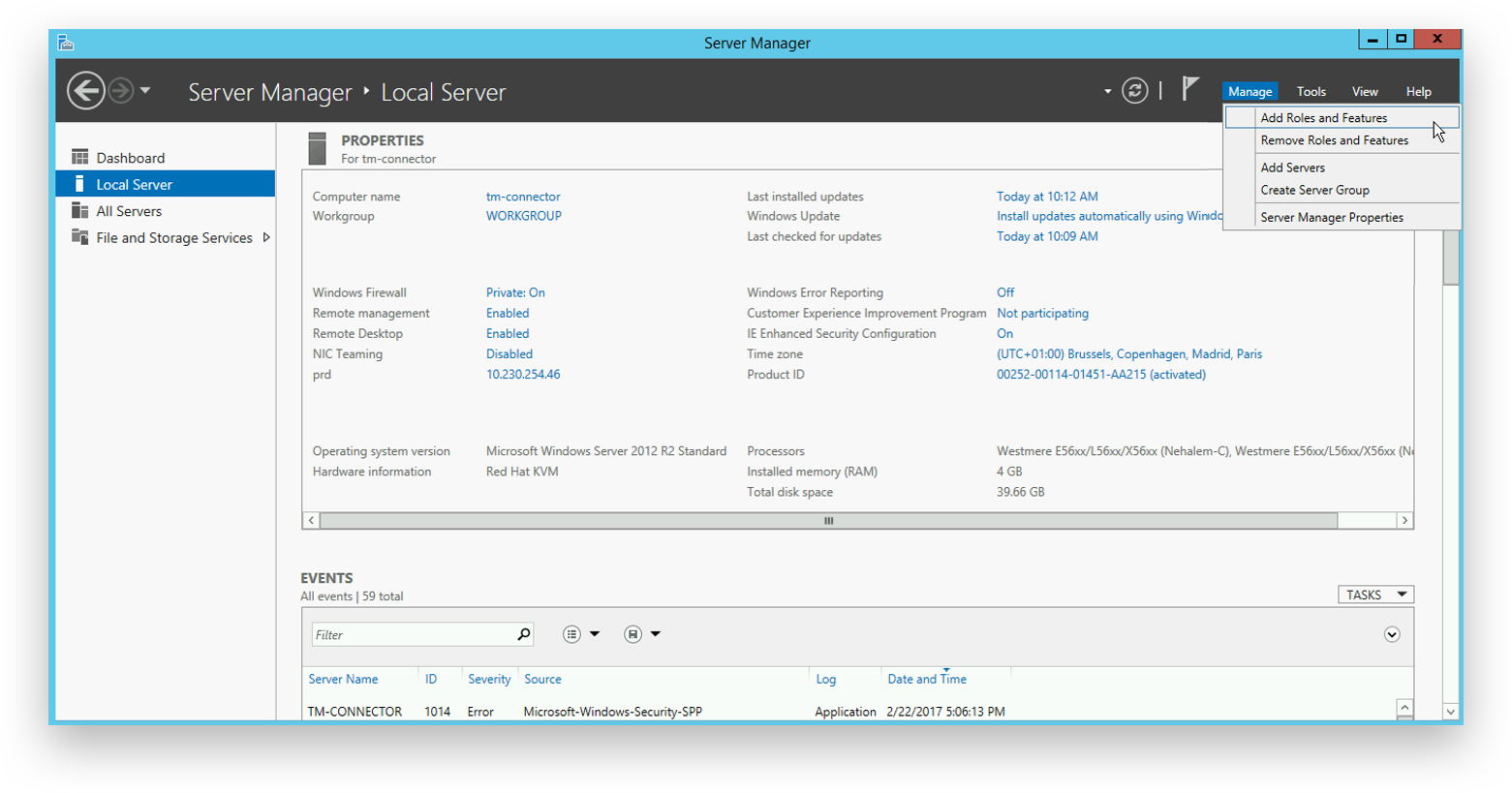

  2. Go to Manage - Add Roles and Features

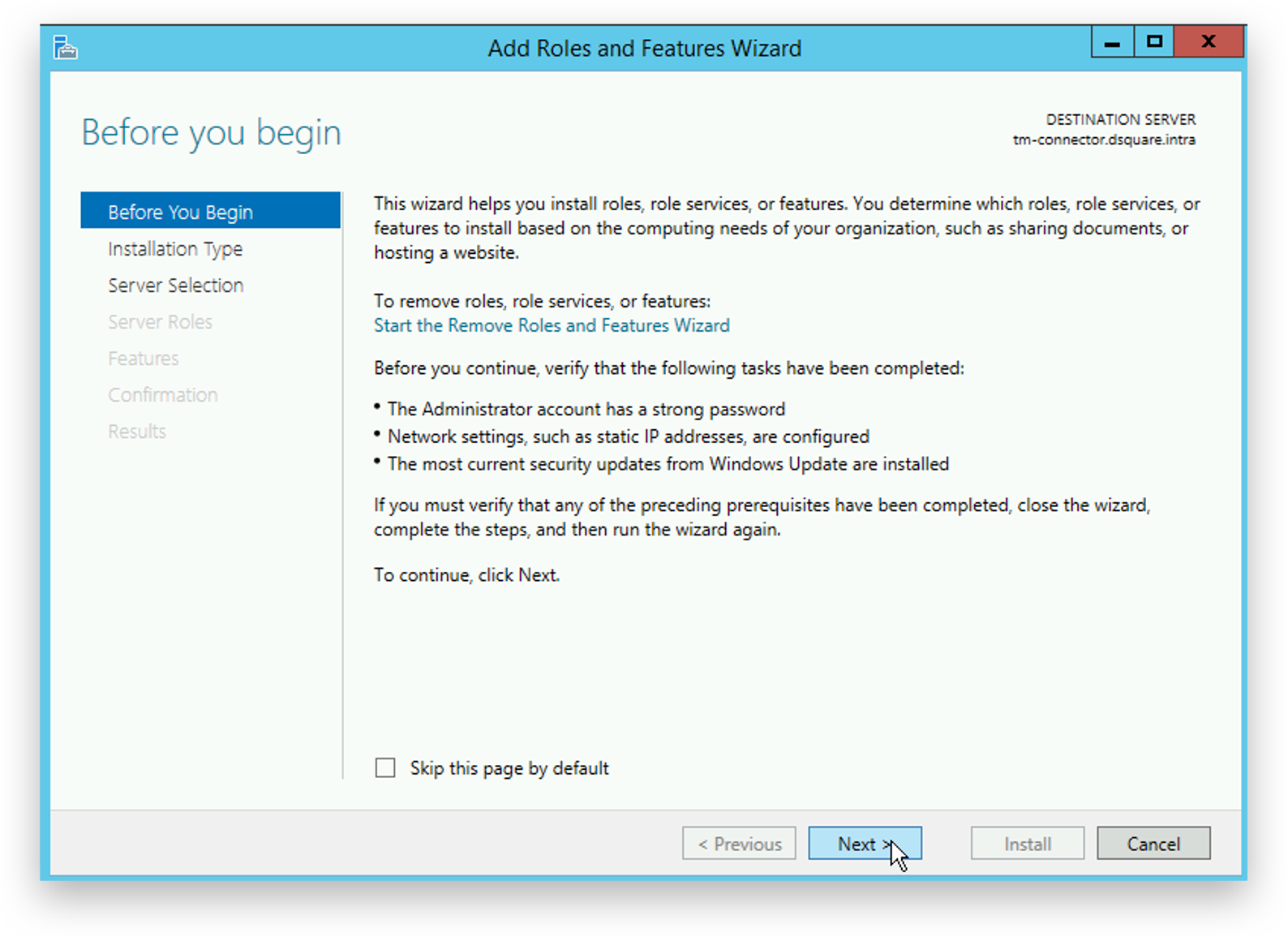

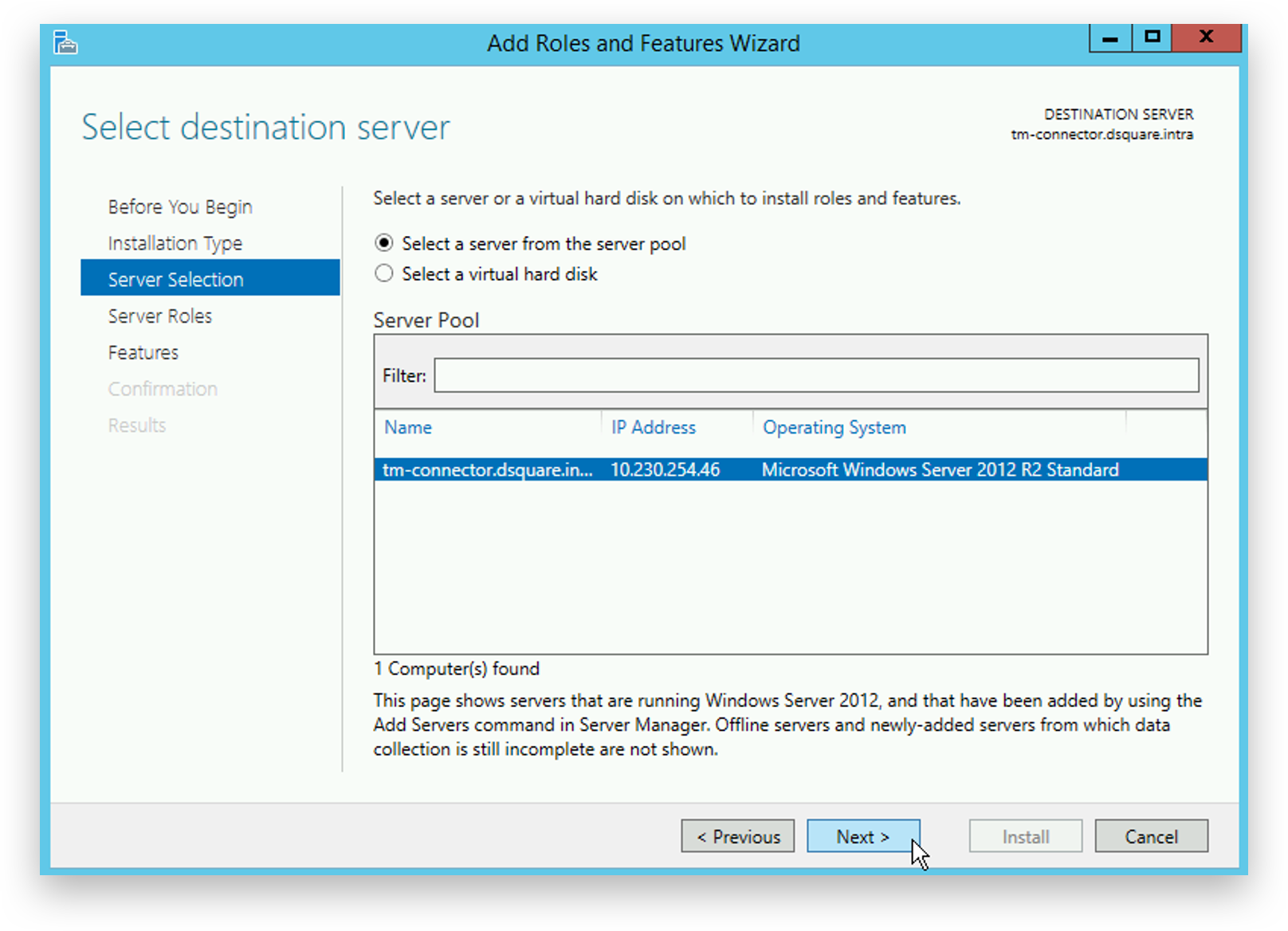

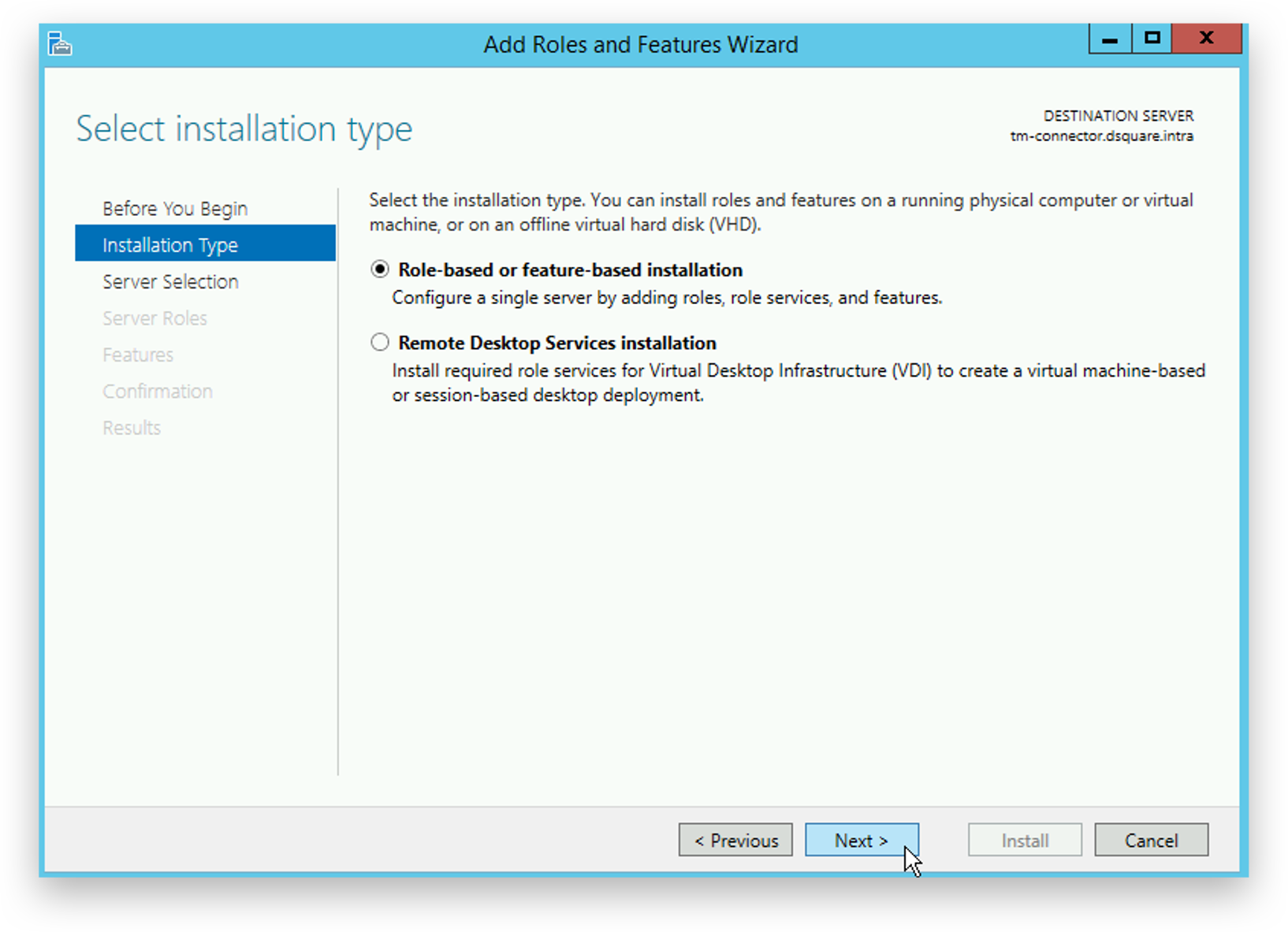

  3. Click 'Next'.


  4. Click 'Next'.


  5. Click 'Next'.

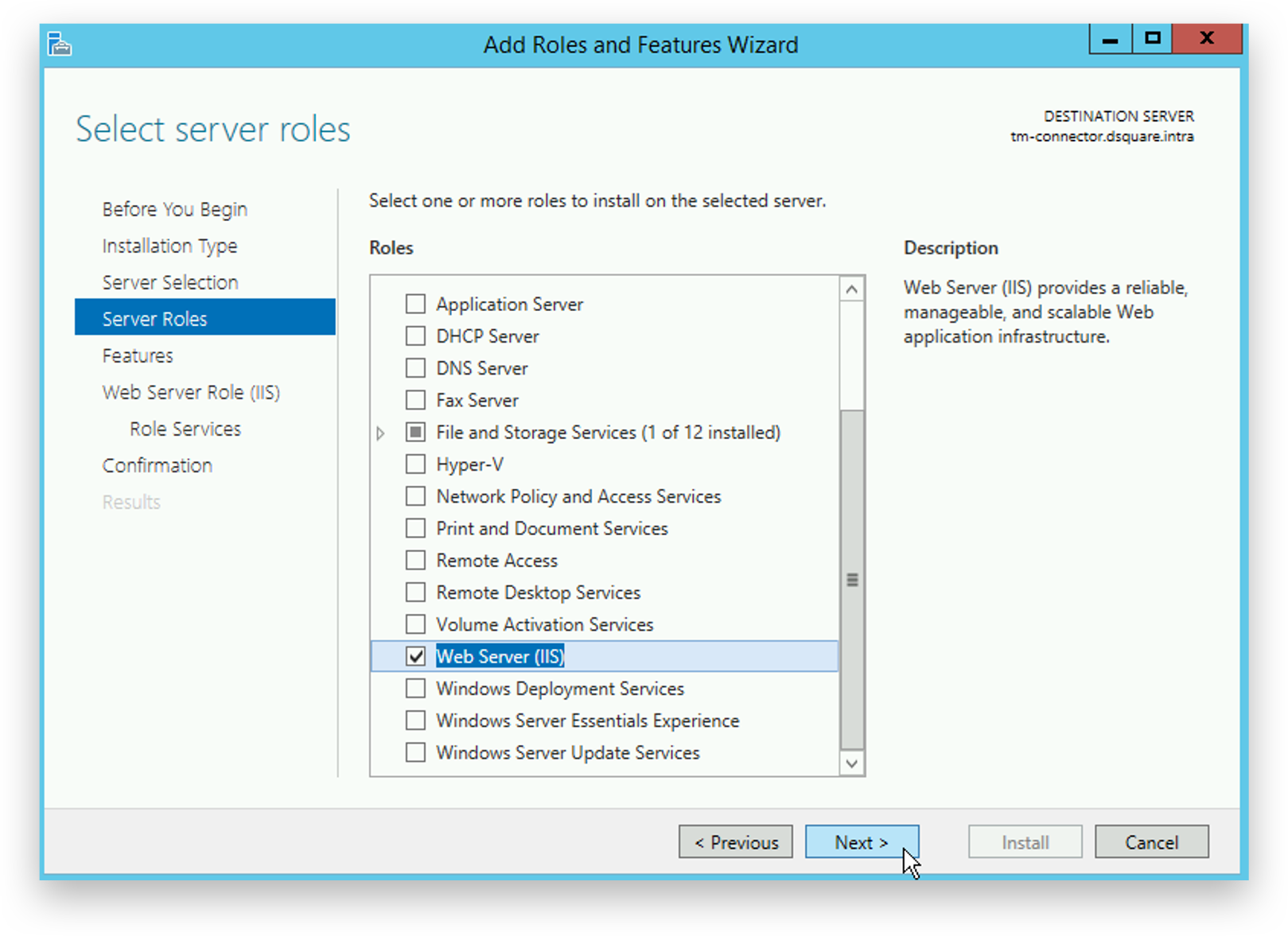

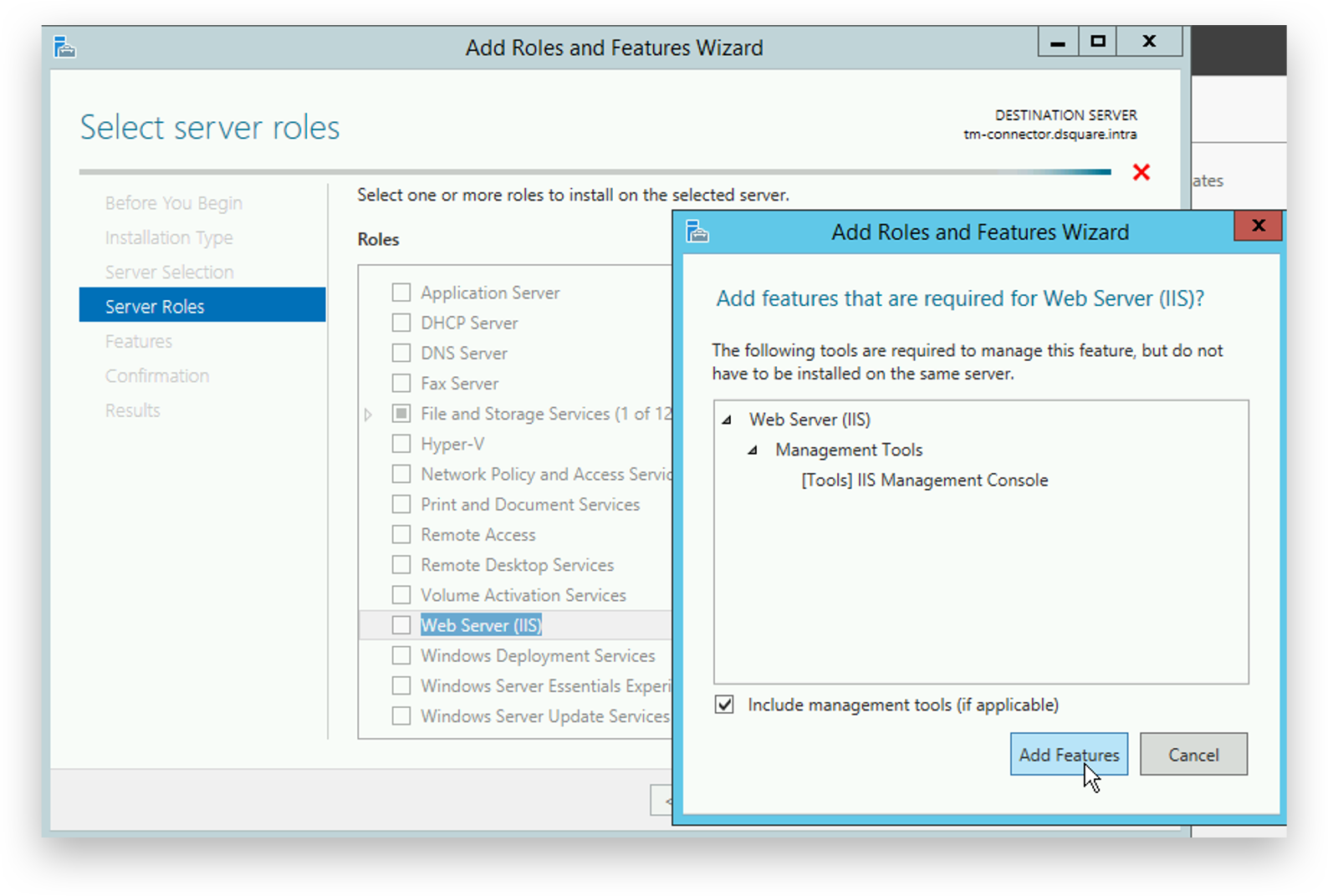

  6. Select the Web Server (IIS) server role and click 'Add Features'.

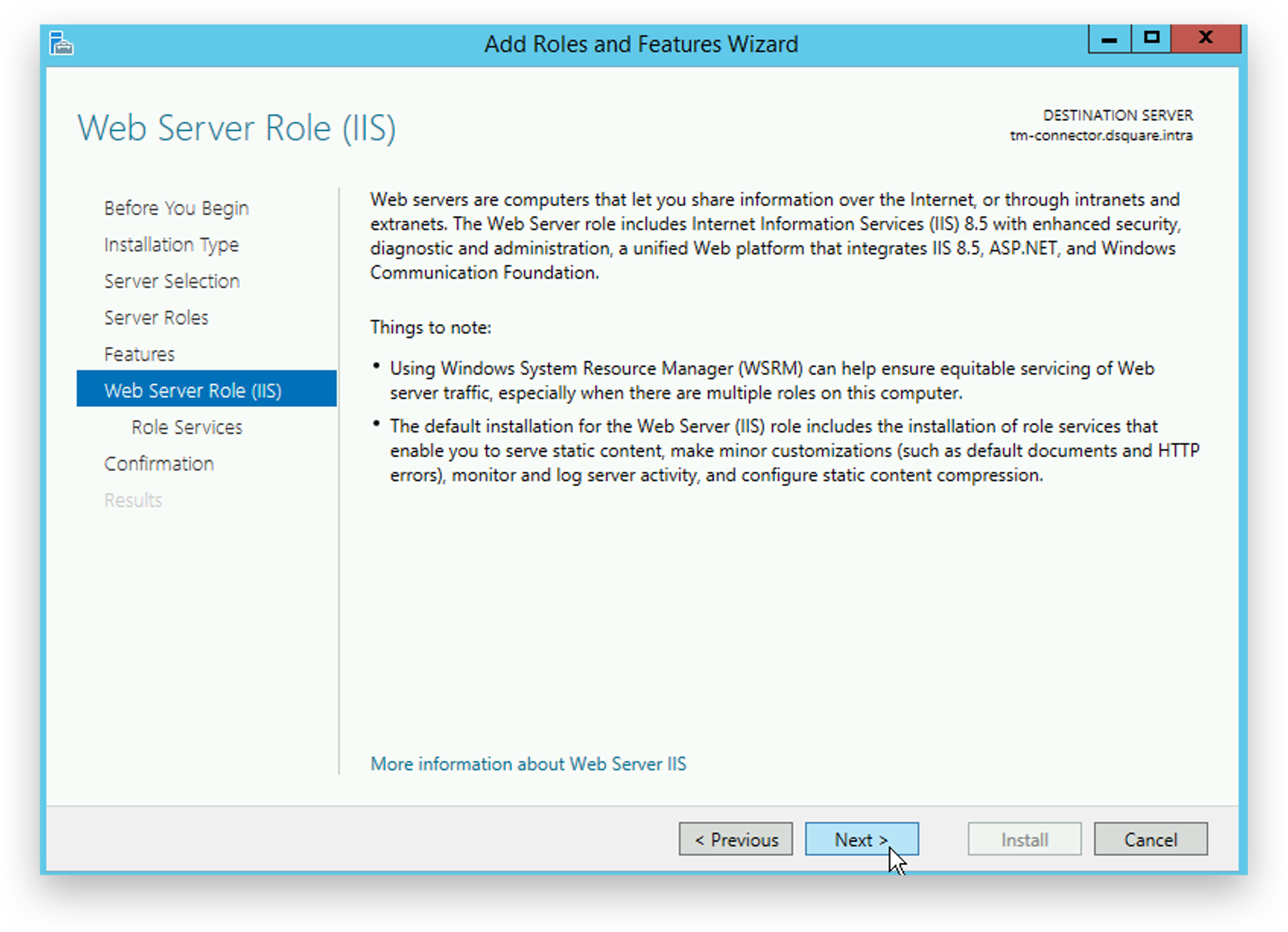

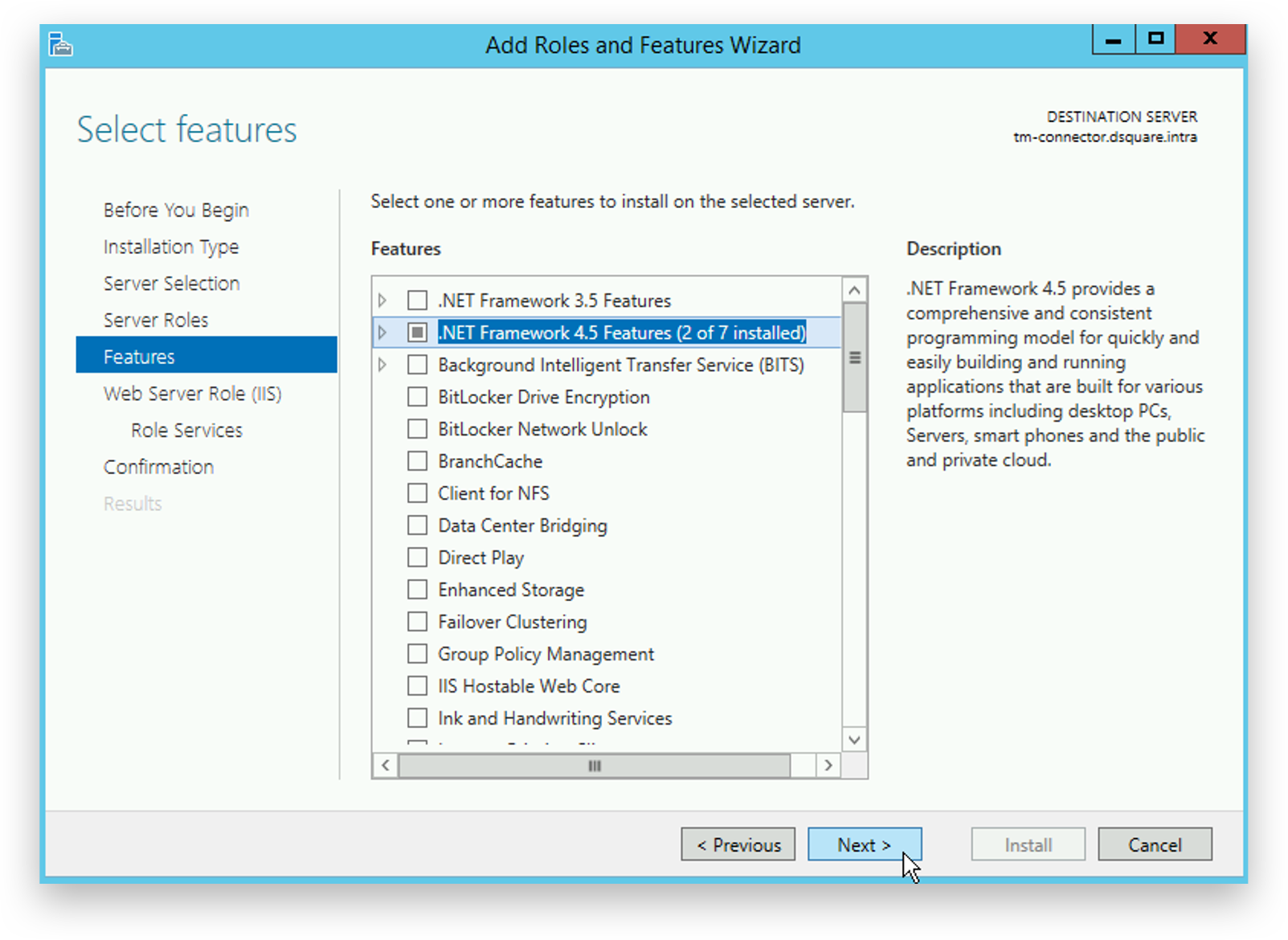

  7. Click 'Next'.


  8. Click 'Next'.


  9. Click 'Next'.

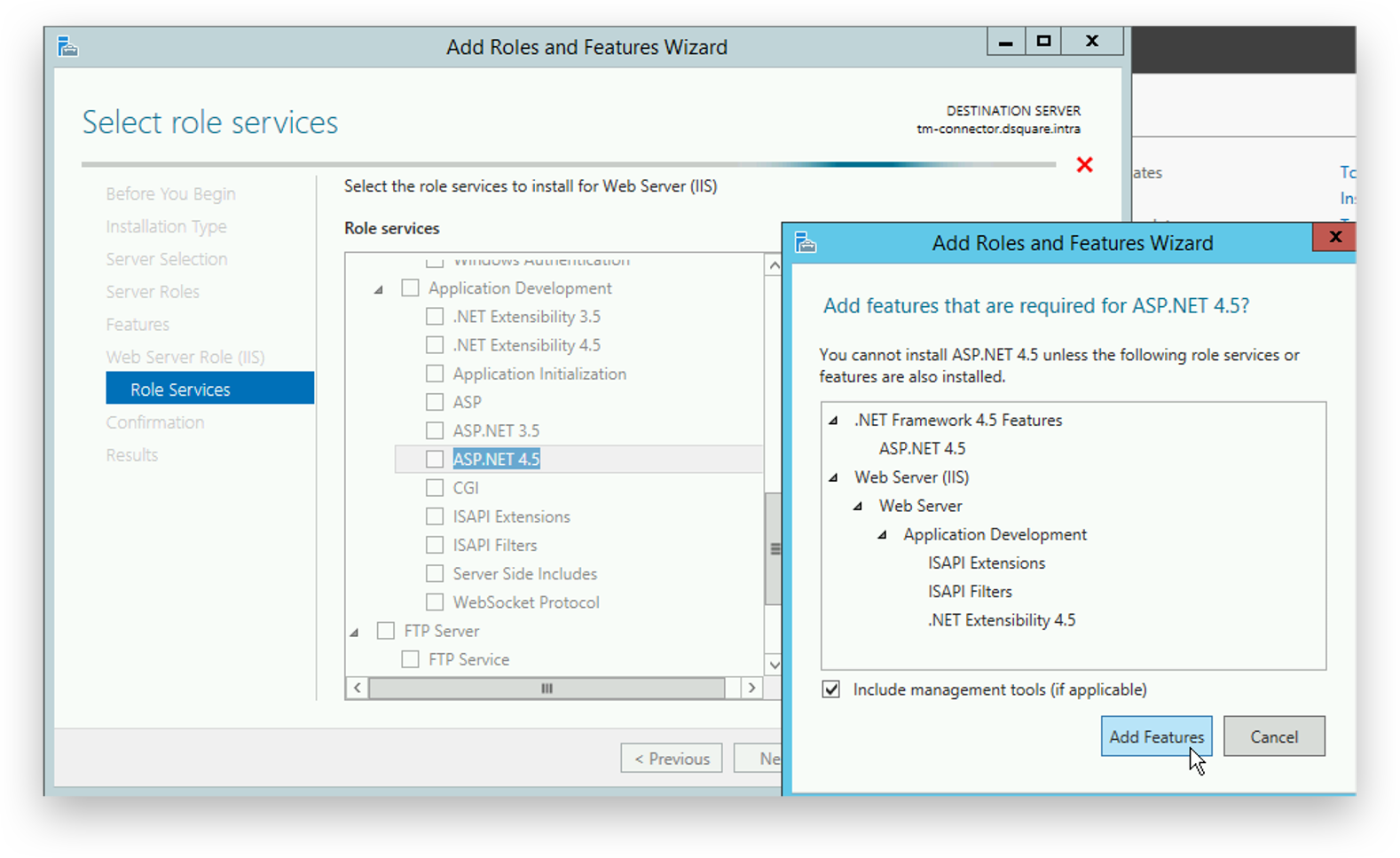

  10. Find and select ASP.NET 4.5 and click 'Add Features'.


    Wichtig

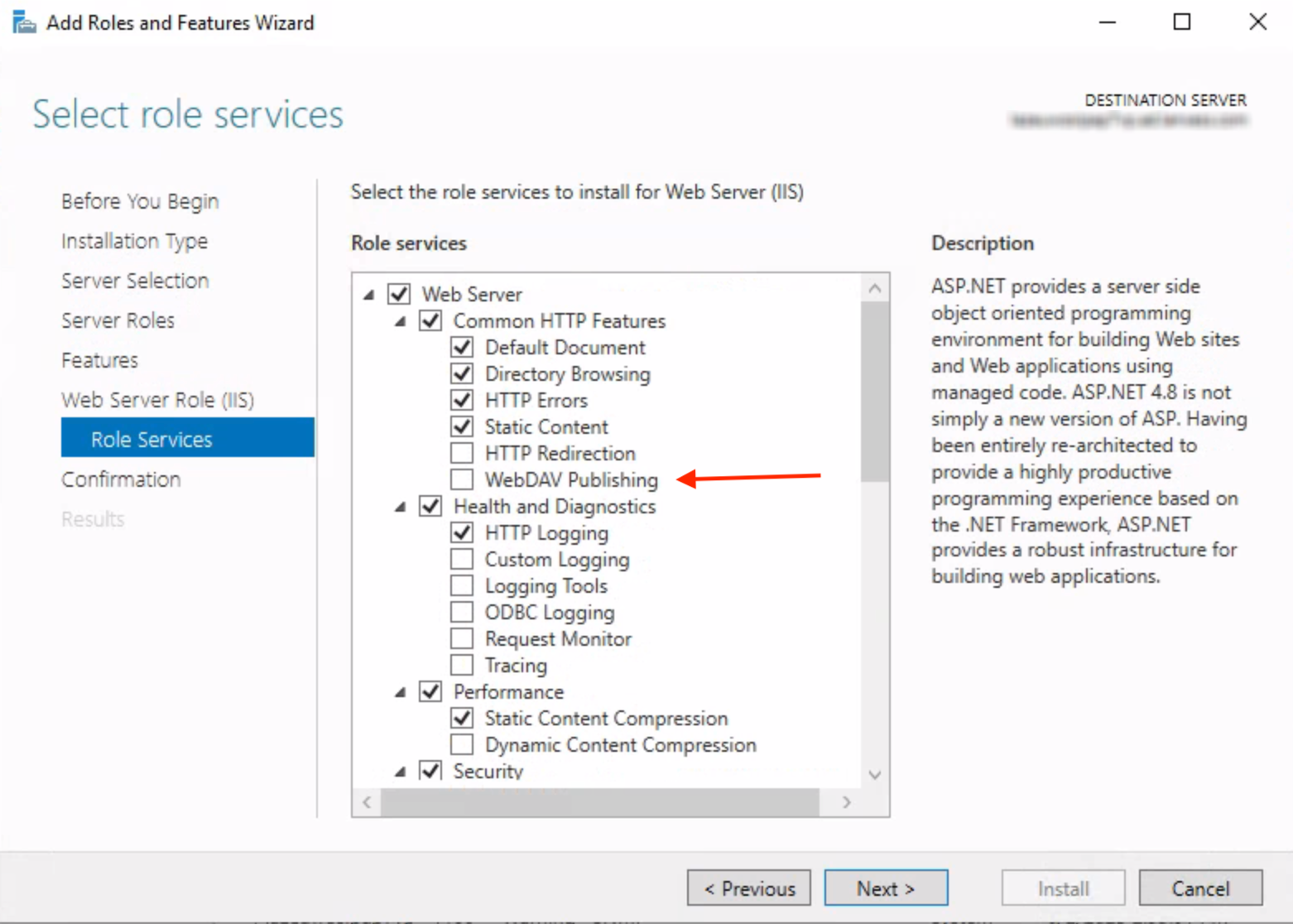

    Before continuing, please make sure "Web Server (IIS) -> Web Server -> Common HTTP Features -> WebDAV Publishing" is disabled

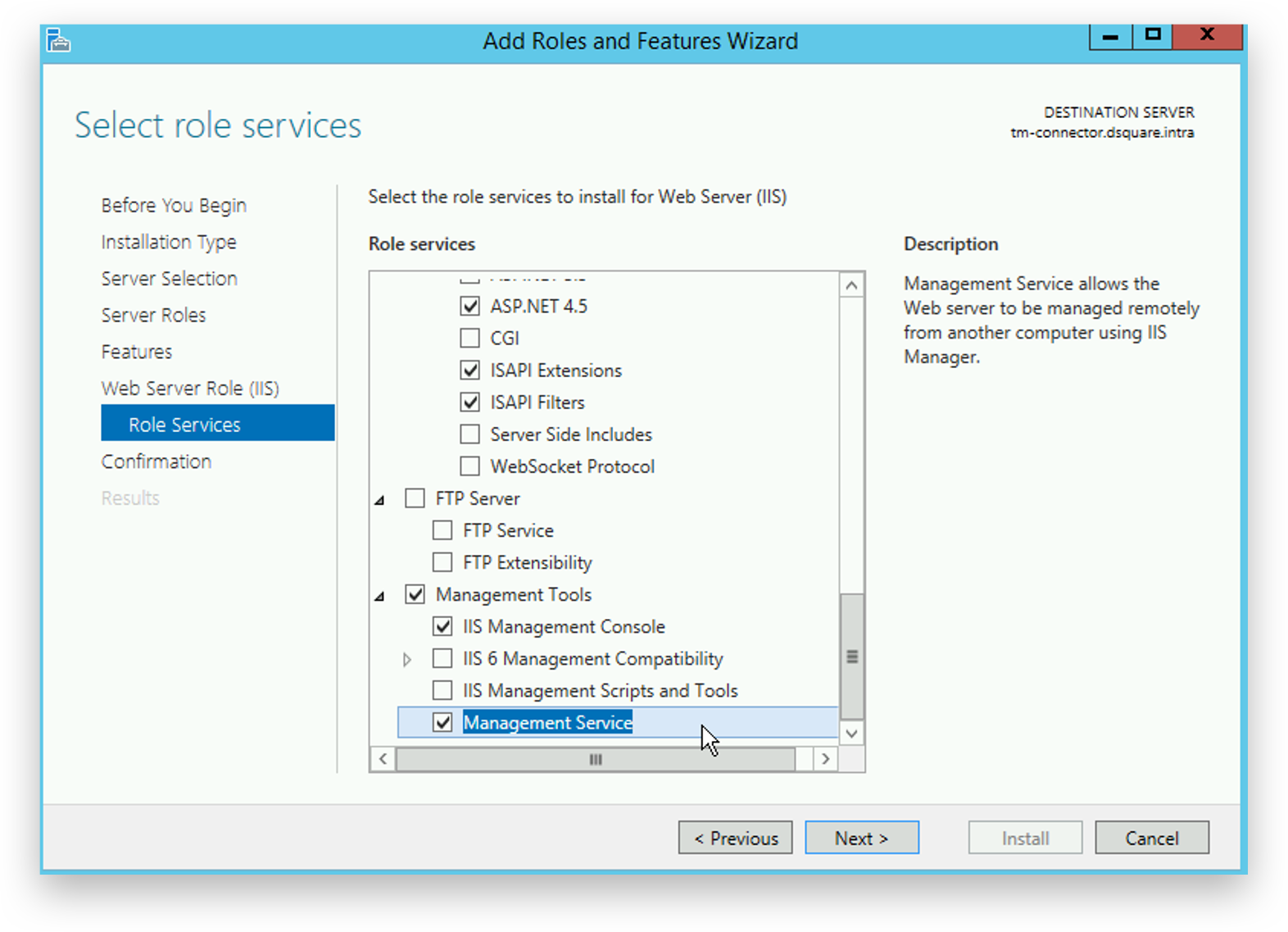

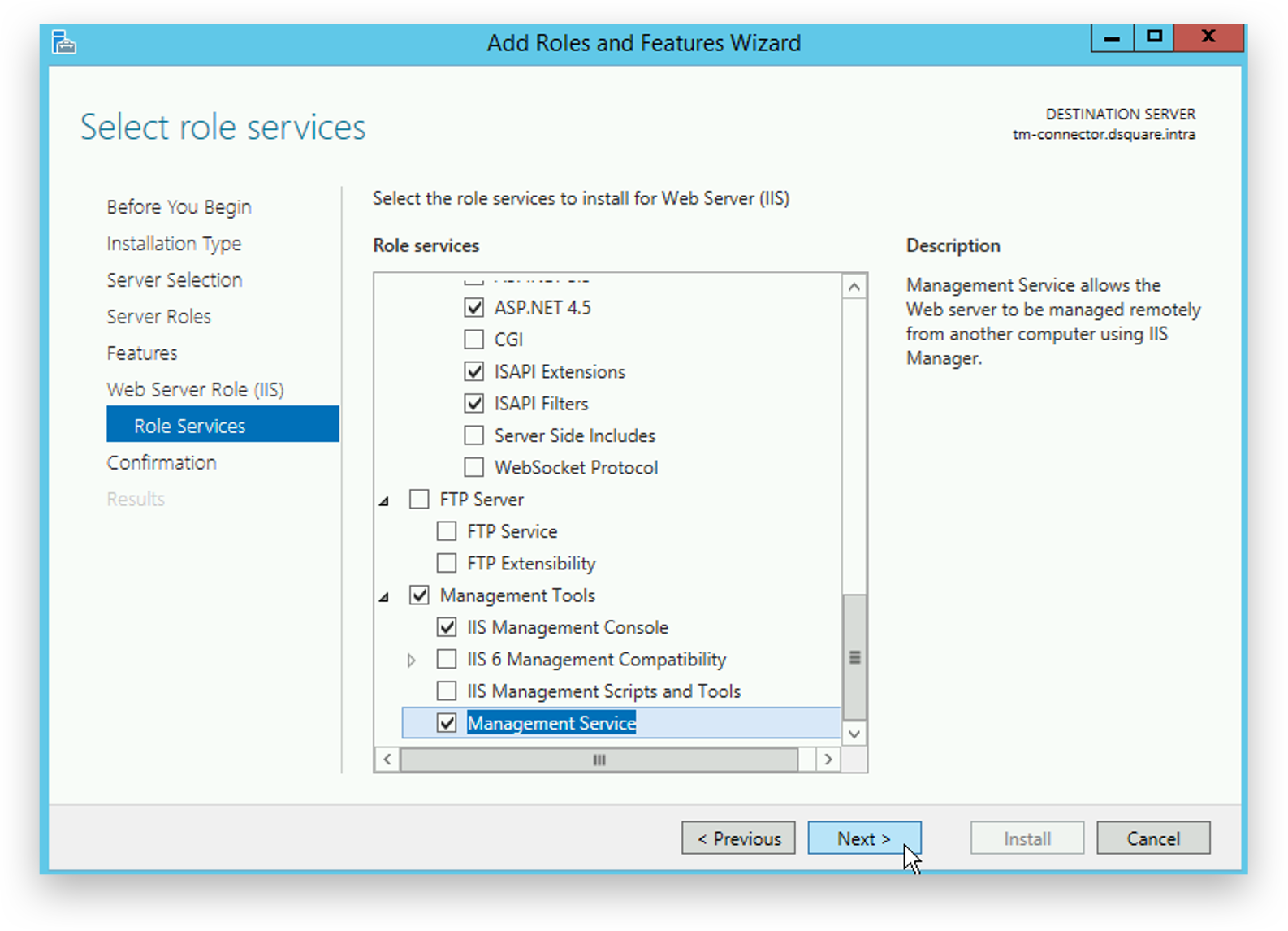

  11. Add the Management Server (required by IIS Web Deploy).


  12. Click 'Next'.

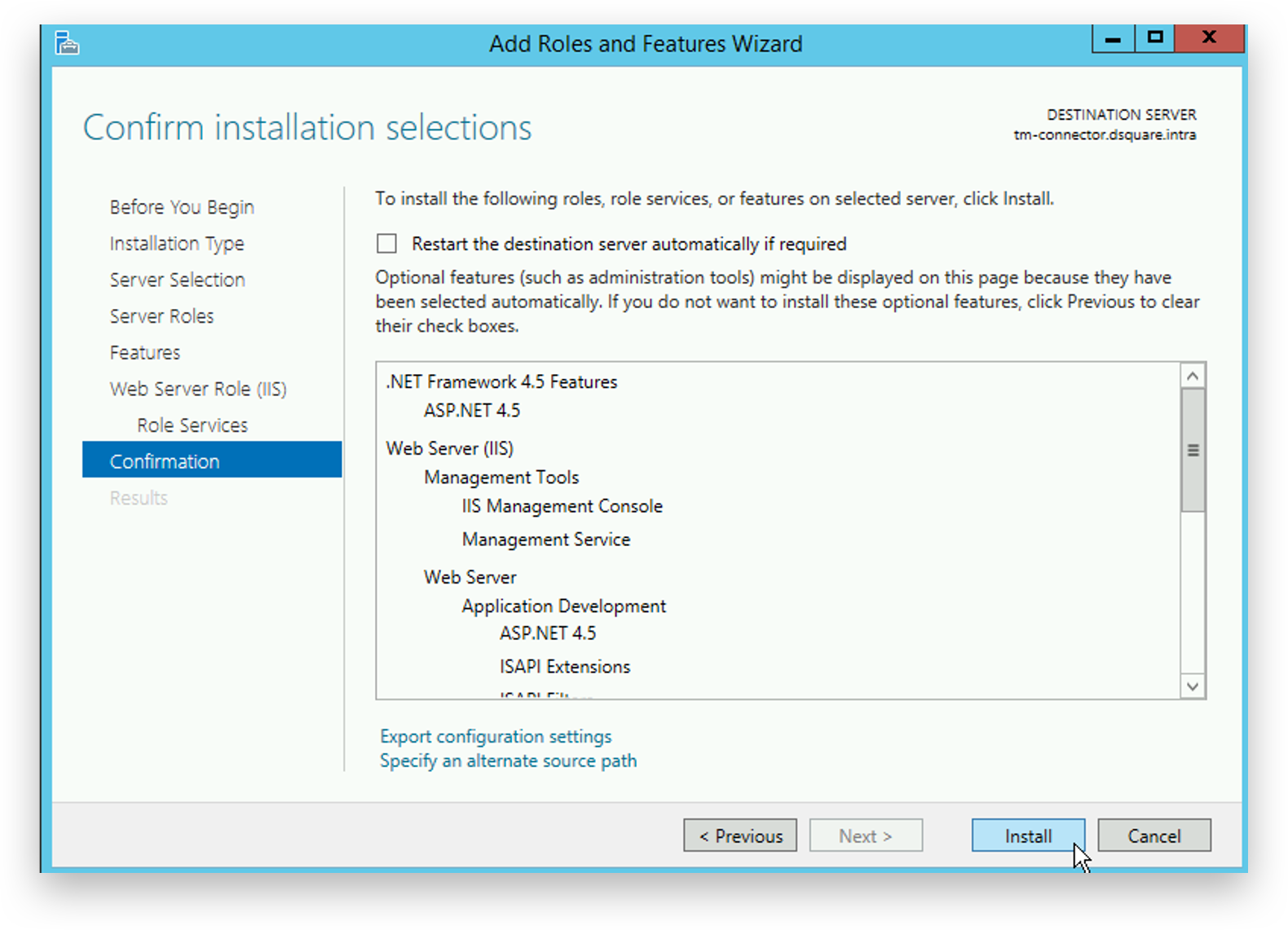

  13. Click 'Install'.

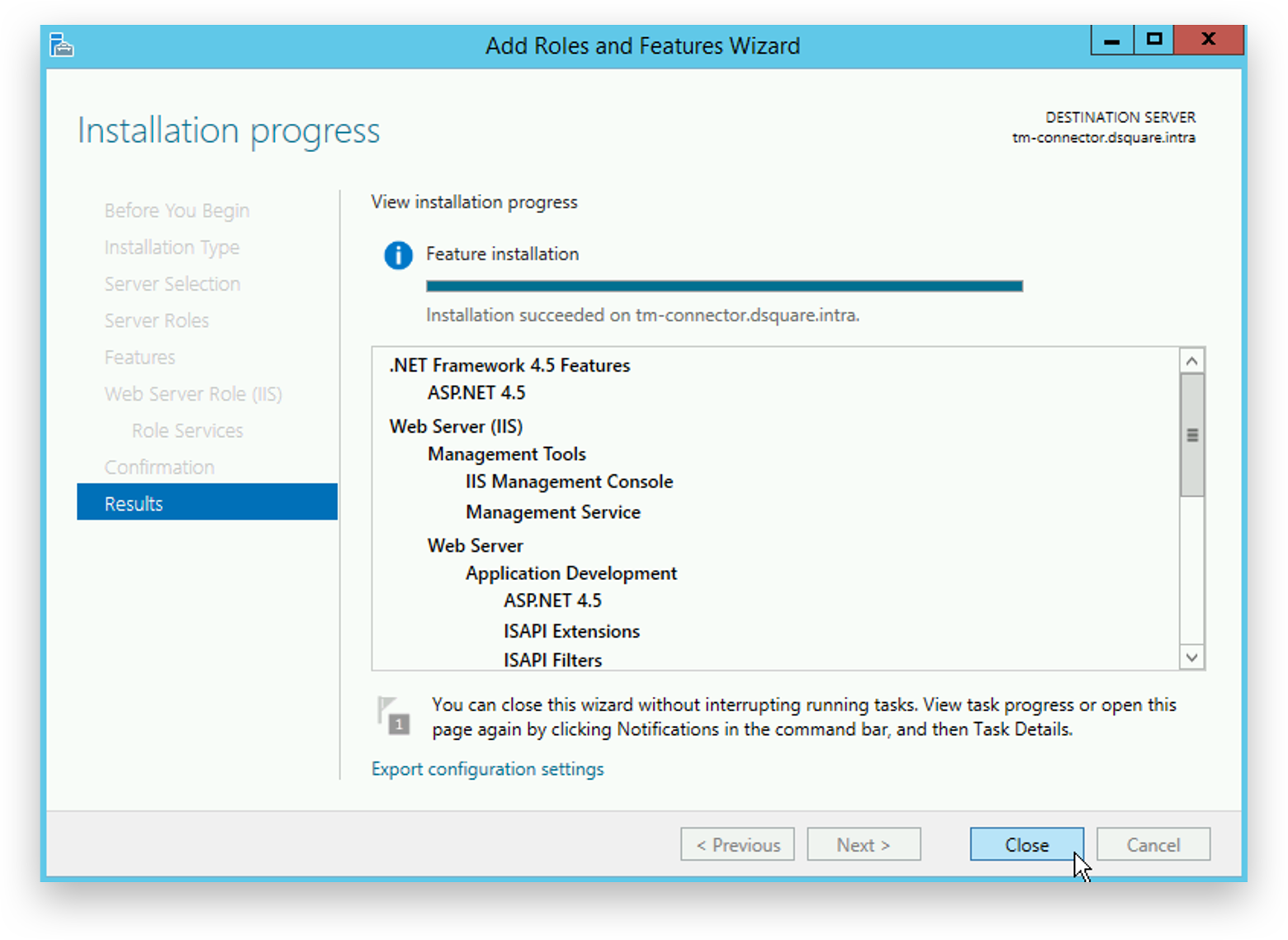

  14. Wait for the installation to complete and click 'Close'.

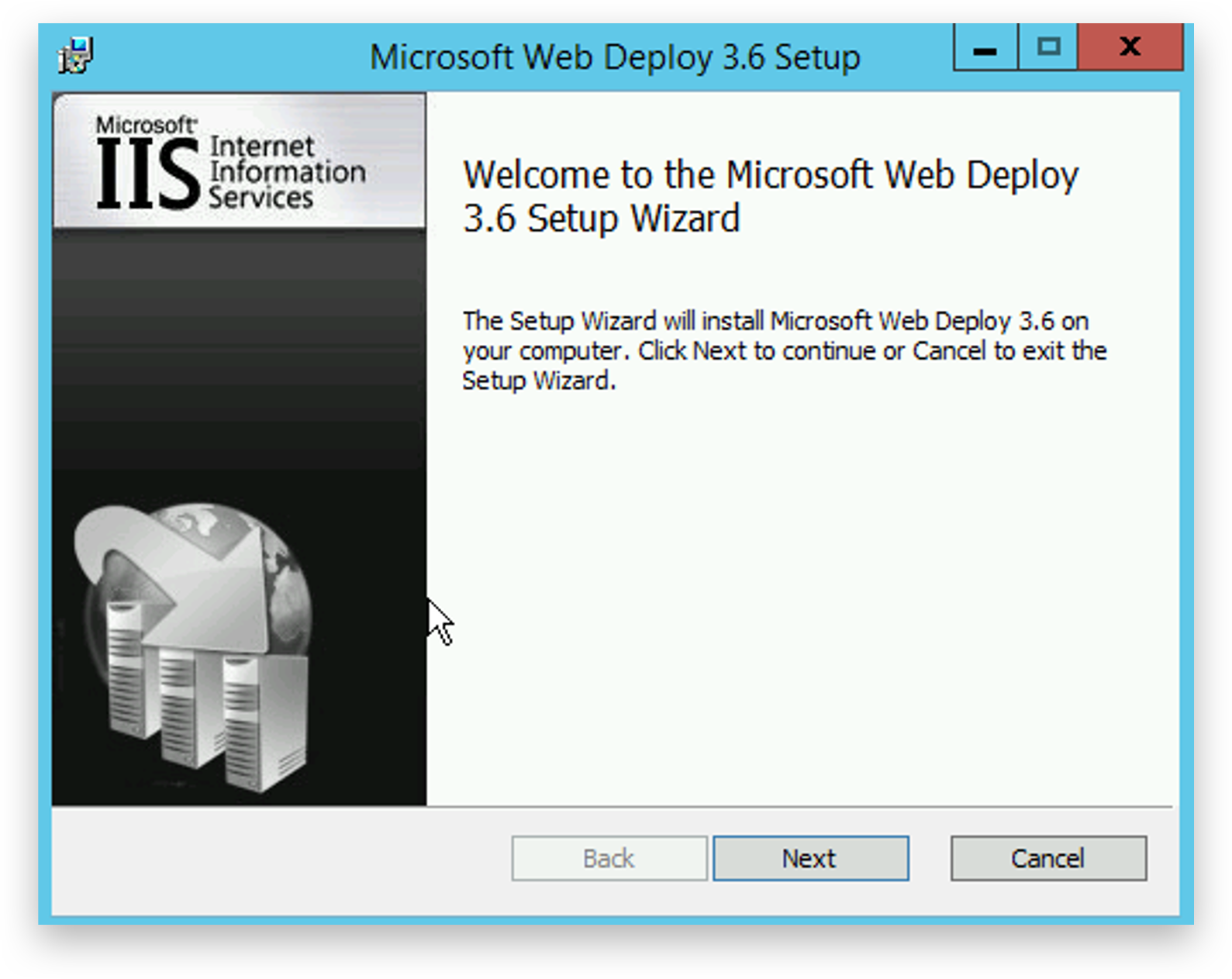

  15. Start the IIS Web Deploy installation.

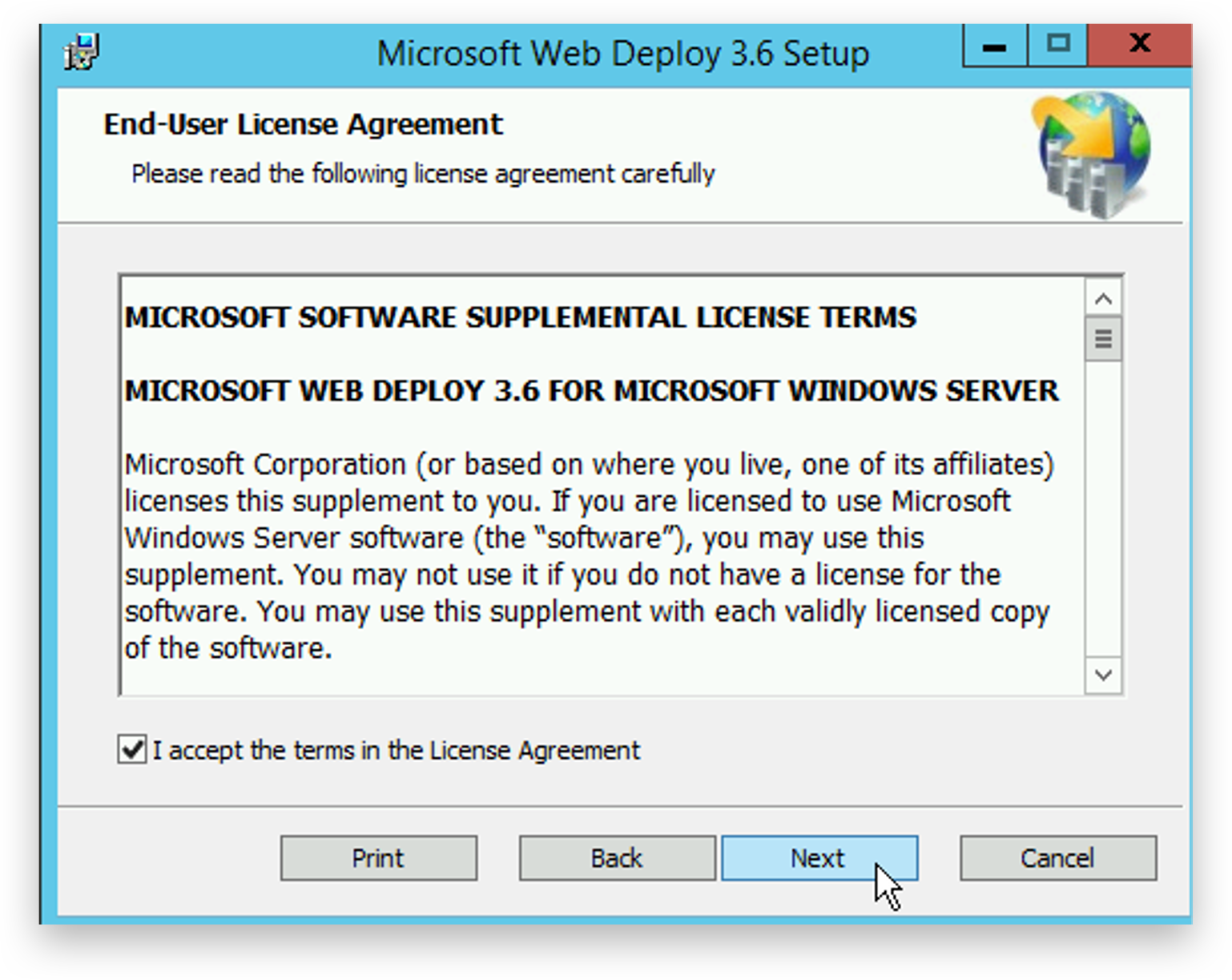

  16. Read and accept the license agreement before clicking 'Next'.

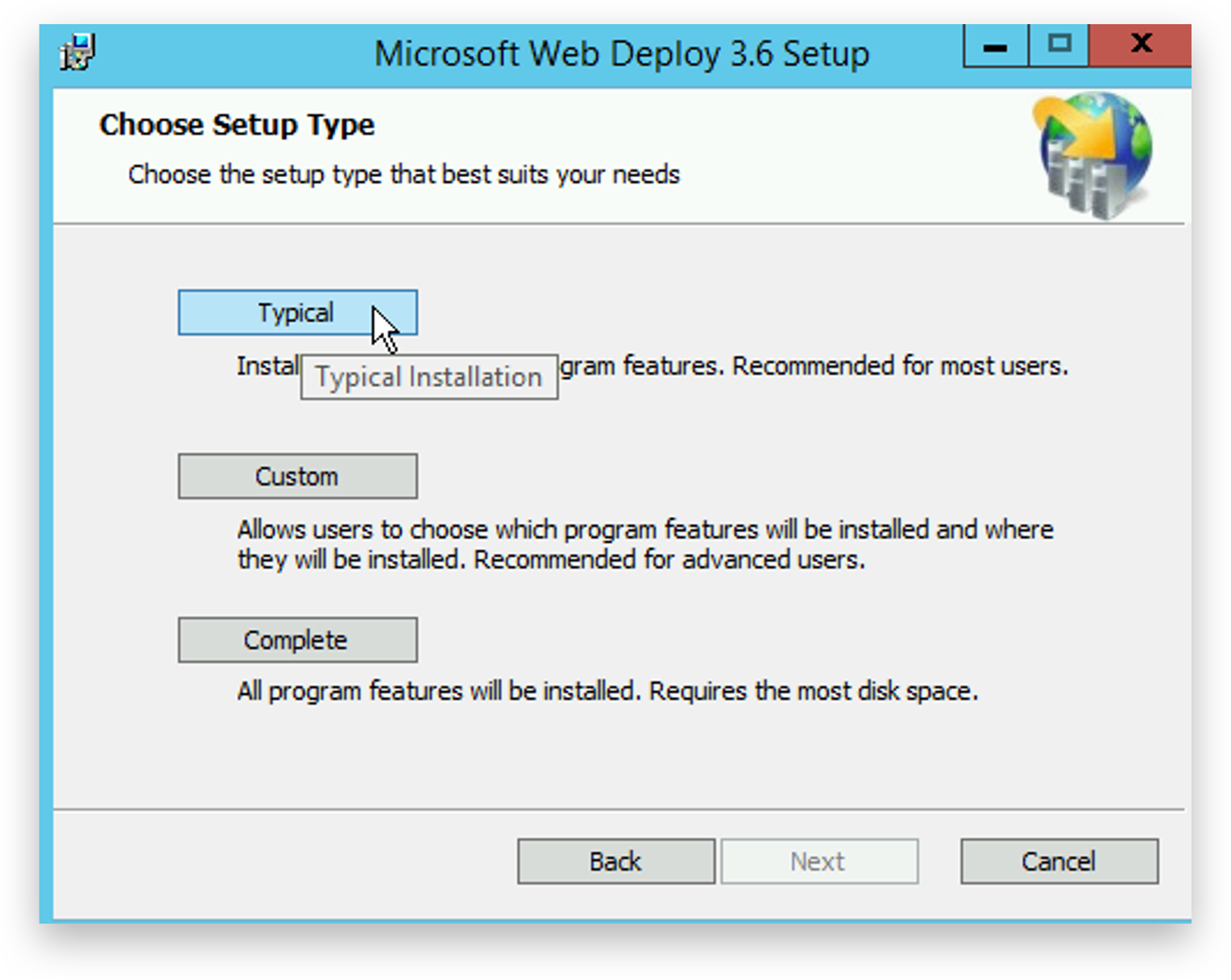

  17. Select the 'Typical' installation box.

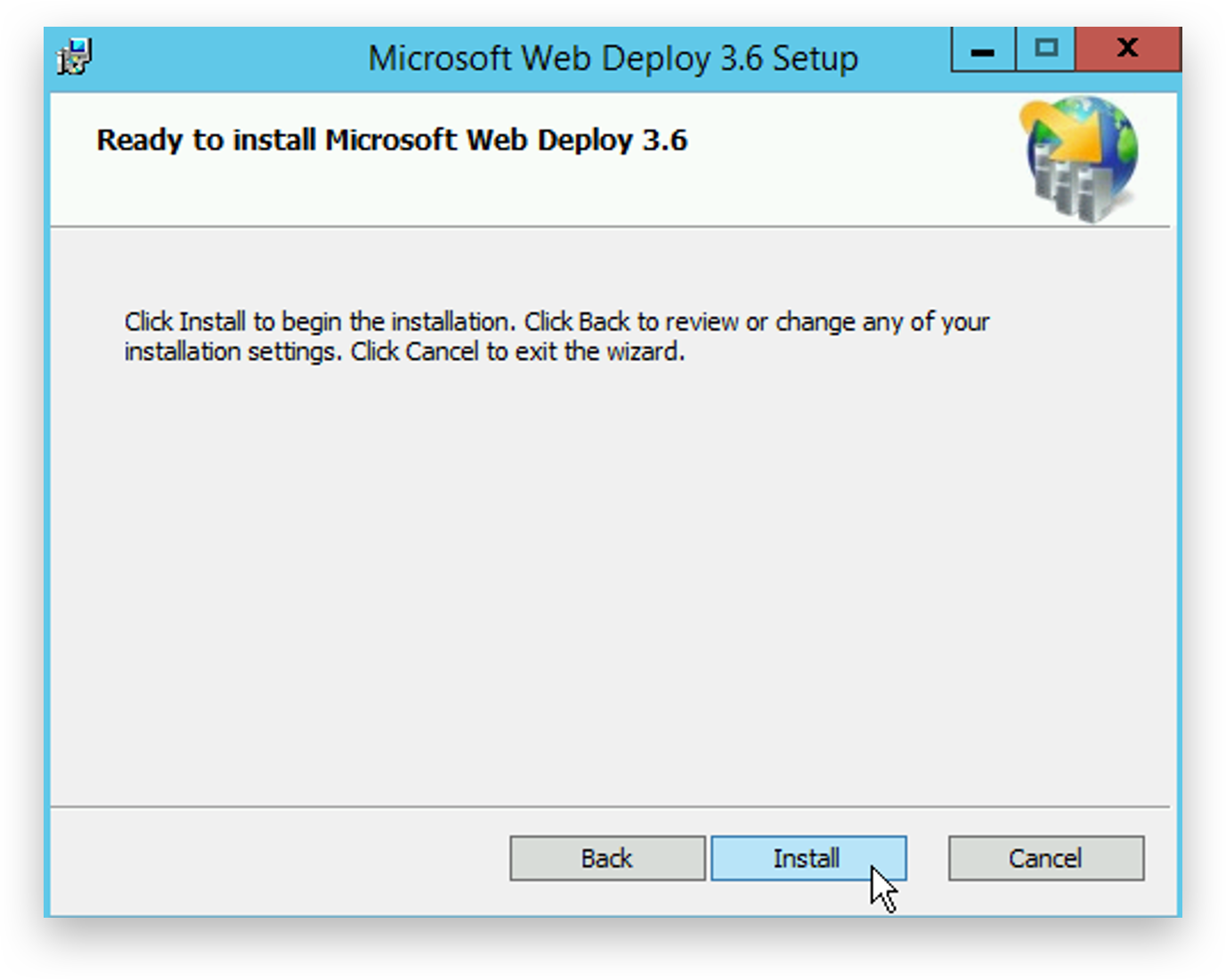

  18. Click 'Install'.


  19. Click 'Finish' to complete the prerequisites installation.
